# Functional Programming use case: Excel Parser
`@JulienTruffaut`

???
- notes here
- see https://remarkjs.com/#1

---
# Use case

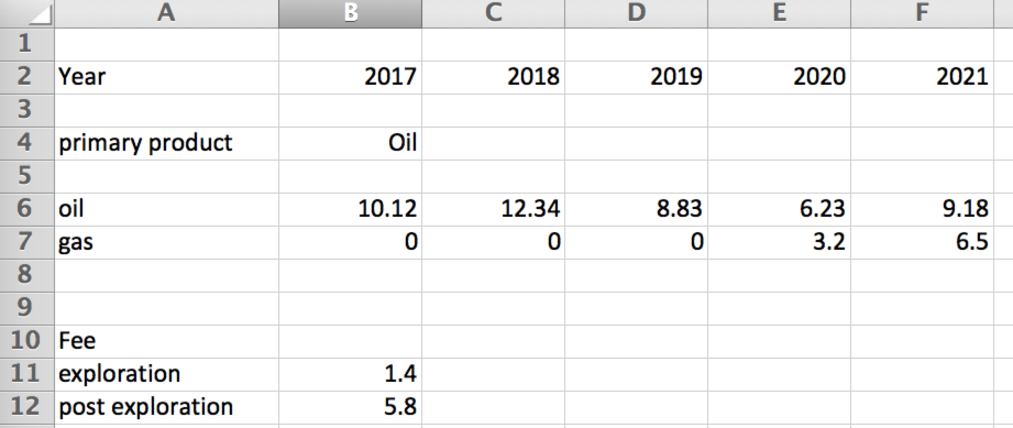

.center[![workbook](workbook-intro.png)]

---
# Use case

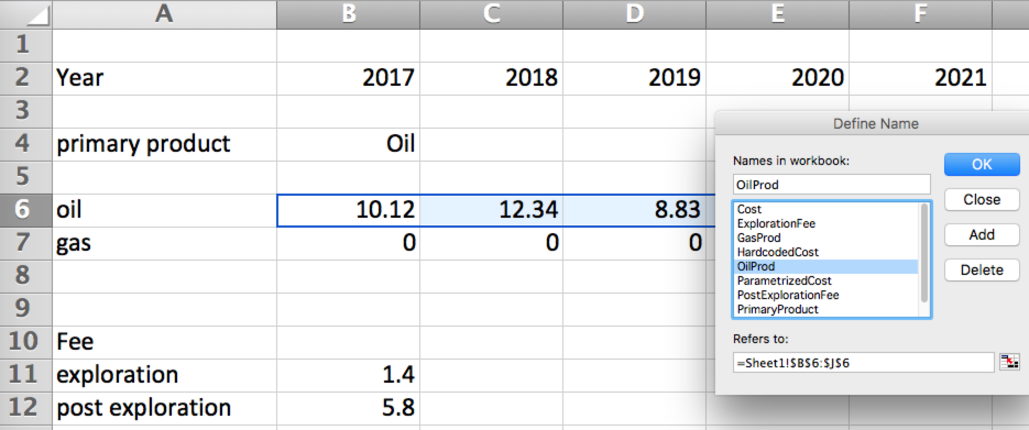

.center[![workbook](workbook-with-name.png)]

---
# Excel API: Workbook

```scala
libraryDependencies += "org.apache.poi" % "poi-ooxml"  % "3.15"
```

```scala
import org.apache.poi.ss.usermodel.{Workbook, WorkbookFactory}

def load(fileName: String): Workbook =
    WorkbookFactory.create(getClass.getClassLoader.getResourceAsStream(fileName))

val workbook = load("example.xlsx")
```

```

All codes and slides are available on github at `julien-truffaut/excel-parser`

---
# Excel API: Name

```scala
scala> val oilProd = workbook.getName("OilProd")
oilProd: org.apache.poi.ss.usermodel.Name = org.apache.poi.xssf.usermodel.XSSFName@388b6fea

scala> val oilProdFormula = oilProd.getRefersToFormula
oilProdFormula: String = Sheet1!$B$6:$J$6
```

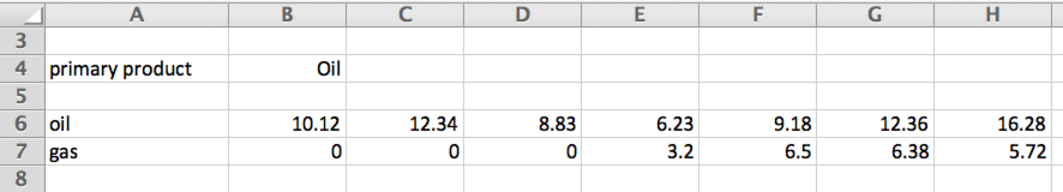

.center[![workbook](workbook.png)]

---
# Excel API: AreaReference

```scala
import org.apache.poi.ss.util.AreaReference

val oilProdFormula = workbook.getName("OilProd").getRefersToFormula

val area = new AreaReference(oilProdFormula, workbook.getSpreadsheetVersion)
```

```scala
scala> val cellRefs = area.getAllReferencedCells
cellRefs: Array[org.apache.poi.ss.util.CellReference] = Array(org.apache.poi.ss.util.CellReference [Sheet1!$B$6], org.apache.poi.ss.util.CellReference [Sheet1!$C$6], org.apache.poi.ss.util.CellReference [Sheet1!$D$6], org.apache.poi.ss.util.CellReference [Sheet1!$E$6], org.apache.poi.ss.util.CellReference [Sheet1!$F$6], org.apache.poi.ss.util.CellReference [Sheet1!$G$6], org.apache.poi.ss.util.CellReference [Sheet1!$H$6], org.apache.poi.ss.util.CellReference [Sheet1!$I$6], org.apache.poi.ss.util.CellReference [Sheet1!$J$6])

scala> cellRefs.foreach(println)
org.apache.poi.ss.util.CellReference [Sheet1!$B$6]
org.apache.poi.ss.util.CellReference [Sheet1!$C$6]
org.apache.poi.ss.util.CellReference [Sheet1!$D$6]
org.apache.poi.ss.util.CellReference [Sheet1!$E$6]
org.apache.poi.ss.util.CellReference [Sheet1!$F$6]
org.apache.poi.ss.util.CellReference [Sheet1!$G$6]
org.apache.poi.ss.util.CellReference [Sheet1!$H$6]
org.apache.poi.ss.util.CellReference [Sheet1!$I$6]
org.apache.poi.ss.util.CellReference [Sheet1!$J$6]
```
---
# Excel API: Cell

```scala
val cellRef = cellRefs.head

val cell = workbook.
  getSheet(cellRef.getSheetName).
  getRow(cellRef.getRow).
  getCell(cellRef.getCol)
```

```scala
scala> cell.getNumericCellValue
res6: Double = 10.12
```

```scala
scala> cell.getStringCellValue
java.lang.IllegalStateException: Cannot get a STRING value from a NUMERIC cell
  at org.apache.poi.xssf.usermodel.XSSFCell.typeMismatch(XSSFCell.java:1050)
  at org.apache.poi.xssf.usermodel.XSSFCell.getRichStringCellValue(XSSFCell.java:404)
  at org.apache.poi.xssf.usermodel.XSSFCell.getStringCellValue(XSSFCell.java:356)
  ... 308 elided
```

---
# Cell error handling

```scala
case class ParserError(ref: String, expectedFormat: String, message: String)
```

```scala
import cats.syntax.either._
import org.apache.poi.ss.usermodel.Cell

case class SafeCell(cell: Cell){
  val reference = s"${cell.getSheet.getSheetName}!${cell.getAddress}"

def asDouble: Either[ParserError, Double] =
    Either.catchNonFatal(cell.getNumericCellValue).leftMap(e =>
      ParserError(reference, "Numeric", e.getMessage)
    )

def asString: Either[ParserError, String] =
    Either.catchNonFatal(cell.getStringCellValue).leftMap(e =>
      ParserError(reference, "String", e.getMessage)
    )
}
```

---
# Cell error handling

```scala
val safeCell = SafeCell(cell)
```

```scala
scala> safeCell.asDouble
res9: Either[ParserError,Double] = Right(10.12)

scala> safeCell.asString
res10: Either[ParserError,String] = Left(ParserError(Sheet1!B6,String,Cannot get a STRING value from a NUMERIC cell))
```

---
# Parsing API

```scala
def numericRange(workbook: Workbook, name: String): Either[ParserError, List[Double]] = ???

def numeric(workbook: Workbook, name: String): Either[ParserError, Double] = ???

def stringRange(workbook: Workbook, name: String): Either[ParserError, List[String]] = ???

def string(workbook: Workbook, name: String): Either[ParserError, String] = ???

// ...
```

```scala
numericRange(workbook, "OilProd")
```

---
# Parsing Doubles

```scala
def numericRange(workbook: Workbook, name: String): Either[ParserError, List[Double]] = {
  val formula = workbook.getName(name).getRefersToFormula
  val area    = new AreaReference(formula, workbook.getSpreadsheetVersion)
  val cells   = area.getAllReferencedCells.toList.map(cellRef =>
    workbook
      .getSheet(cellRef.getSheetName)
      .getRow(cellRef.getRow)
      .getCell(cellRef.getCol)
  )

val safeCells: List[SafeCell] = cells.map(SafeCell)
  val doubles: List[Either[ParserError, Double]] = safeCells.map(_.asDouble)
  ???
}
```

---
# Parsing Doubles

```scala
import cats.syntax.traverse._
import cats.instances.either._
import cats.instances.list._

def numericRange(workbook: Workbook, name: String): Either[ParserError, List[Double]] = {
  val formula = workbook.getName(name).getRefersToFormula
  val area    = new AreaReference(formula, workbook.getSpreadsheetVersion)
  val cells   = area.getAllReferencedCells.toList.map(cellRef =>
    workbook
      .getSheet(cellRef.getSheetName)
      .getRow(cellRef.getRow)
      .getCell(cellRef.getCol)
  )

val safeCells: List[SafeCell] = cells.map(SafeCell)
  val doubles: List[Either[ParserError, Double]] = safeCells.map(_.asDouble)
  doubles.sequenceU
}
```

---
# Parsing Doubles

```scala
def numericRange(workbook: Workbook, name: String): Either[ParserError, List[Double]] = {
  val area = new AreaReference(workbook.getName(name).getRefersToFormula, workbook.getSpreadsheetVersion)
  area.getAllReferencedCells.toList.map(cellRef =>
    workbook
      .getSheet(cellRef.getSheetName)
      .getRow(cellRef.getRow)
      .getCell(cellRef.getCol)
  ).map(SafeCell).traverseU(_.asDouble)
}
```

```scala
scala> numericRange(workbook, "OilProd")
res18: Either[ParserError,List[Double]] = Right(List(10.12, 12.34, 8.83, 6.23, 9.18, 12.36, 16.28, 18.25, 20.01))

scala> numericRange(workbook, "PrimaryProduct")
res19: Either[ParserError,List[Double]] = Left(ParserError(Sheet1!B4,Numeric,Cannot get a NUMERIC value from a STRING cell))
```

---
# Parsing Doubles

```scala
def numericRange(workbook: Workbook,
                 name: String): Either[ParserError, List[Double]] = {
  val area = new AreaReference(workbook.getName(name).getRefersToFormula, workbook.getSpreadsheetVersion)
  area.getAllReferencedCells.toList.map(cellRef =>
    workbook
      .getSheet(cellRef.getSheetName)
      .getRow(cellRef.getRow)
      .getCell(cellRef.getCol)
  ).map(SafeCell).traverseU(_.asDouble)
}
```

```scala
scala> numericRange(workbook, "foo")
java.lang.NullPointerException
  at .numericRange(<console>:36)
  ... 598 elided
```

---
# Parsing Doubles

```scala
sealed trait ParserError extends Product with Serializable

case class InvalidFormat(ref: String, expectedFormat: String, message: String) extends ParserError
case class MissingName(name: String) extends ParserError
case class MissingCell(ref: String) extends ParserError
```

```scala
def getArea(workbook: Workbook, name: String): Either[ParserError, AreaReference] =
  Either.catchNonFatal(
    new AreaReference(workbook.getName(name).getRefersToFormula, workbook.getSpreadsheetVersion)
  ).leftMap(_ => MissingName(name))

def getSafeCell(workbook: Workbook, cellRef: CellReference): Either[ParserError, SafeCell] =
  Either.catchNonFatal(SafeCell(
    workbook
      .getSheet(cellRef.getSheetName)
      .getRow(cellRef.getRow)
      .getCell(cellRef.getCol)
  )).leftMap(_ => MissingCell(cellRef.toString))
```

---
# Parsing doubles

```scala
def numericRange(workbook: Workbook, name: String): Either[ParserError, List[Double]] =
  for {
    area    <- getArea(workbook, name)
    cells   <- area.getAllReferencedCells.toList.traverseU(getSafeCell(workbook, _))
    doubles <- cells.traverseU(_.asDouble)
  } yield doubles
```

```scala
scala> numericRange(workbook, "OilProd")
res23: Either[ParserError,List[Double]] = Right(List(10.12, 12.34, 8.83, 6.23, 9.18, 12.36, 16.28, 18.25, 20.01))

scala> numericRange(workbook, "PrimaryProduct")
res24: Either[ParserError,List[Double]] = Left(InvalidFormat(Sheet1!B4,Numeric,Cannot get a NUMERIC value from a STRING cell))

scala> numericRange(workbook, "foo")
res25: Either[ParserError,List[Double]] = Left(MissingName(foo))
```

---
# Parsing Product

```scala
case class Production(oil: List[Double], gas: List[Double])

def production(workbook: Workbook,
               oilName: String,
               gasName: String
               ): Either[ParserError, Production] = ???
```

---
# Parsing Product

```scala
case class Production(oil: List[Double], gas: List[Double])

def production(workbook: Workbook,
               oilName: String,
               gasName: String
               ): Either[ParserError, Production] =
  for {
    oil <- numericRange(workbook, oilName)
    gas <- numericRange(workbook, gasName)
  } yield Production(oil, gas)
```

---
# Parsing Product

```scala
trait Parser[A]

def product[A, B](pa: Parser[A], pb: Parser[B]): Parser[(A, B)] = ???
```

---
# Parsing Product

```scala
trait Parser[A]{
  def parse(workbook: Workbook, name: String): Either[ParserError, A]
}
```

```scala
val numericRange = new Parser[List[Double]]{
  def parse(workbook: Workbook, name: String): Either[ParserError, List[Double]] = ???
}
```

```scala
def numericRange(workbook: Workbook, name: String): Either[ParserError, List[Double]] = ???
```

---
# Parsing Product

```scala
trait Parser[A]{
  def parse(workbook: Workbook, name: String): Either[ParserError, A]
}

def product[A, B](pa: Parser[A], pb: Parser[B]): Parser[(A, B)] =
  new Parser[(A, B)]{
    def parse(workbook: Workbook, name: String): Either[ParserError, (A, B)] =
      for {
        a <- pa.parse(workbook, ???)
        b <- pb.parse(workbook, ???)
      } yield (a, b)
  }
```

---
# Parser

```scala
trait Parser[A]{
  def parse(workbook: Workbook): Either[ParserError, A]
}
```

```scala
def numericRange(name: String): Parser[List[Double]] =
  new Parser[List[Double]]{
    def parse(workbook: Workbook): Either[ParserError, List[Double]] =
      for {
        area    <- getArea(workbook, name)
        cells   <- area.getAllReferencedCells.toList.traverseU(getSafeCell(workbook, _))
        doubles <- cells.traverseU(_.asDouble)
      } yield doubles
  }
```

---
# Parsing Product

```scala
def product[A, B](pa: Parser[A], pb: Parser[B]): Parser[(A, B)] =
  new Parser[(A, B)]{
    def parse(workbook: Workbook): Either[ParserError, (A, B)] =
      for {
        a <- pa.parse(workbook)
        b <- pb.parse(workbook)
      } yield (a, b)
  }
```

```scala
val oil = numericRange("OilProd")
val gas = numericRange("GasProd")
val foo = numericRange("Foo")
```

```scala
scala> product(oil, gas).parse(workbook)
res31: Either[ParserError,(List[Double], List[Double])] = Right((List(10.12, 12.34, 8.83, 6.23, 9.18, 12.36, 16.28, 18.25, 20.01),List(0.0, 0.0, 0.0, 3.2, 6.5, 6.38, 5.72, 4.54, 6.99)))

scala> product(oil, foo).parse(workbook)
res32: Either[ParserError,(List[Double], List[Double])] = Left(MissingName(Foo))
```

---
# Parsing Production

```scala
scala> product(oil, gas).parse(workbook)
res33: Either[ParserError,(List[Double], List[Double])] = Right((List(10.12, 12.34, 8.83, 6.23, 9.18, 12.36, 16.28, 18.25, 20.01),List(0.0, 0.0, 0.0, 3.2, 6.5, 6.38, 5.72, 4.54, 6.99)))
```

```scala
case class Production(oil: List[Double], gas: List[Double])

def production: Parser[Production] = ???
```

---
# Map

```scala
def map[A, B](pa: Parser[A])(f: A => B): Parser[B] =
  new Parser[B]{
    def parse(workbook: Workbook): Either[ParserError, B] =
      pa.parse(workbook).map(f)
  }
```

```scala
val production = map(product(oil, gas)){case (oil, gas) => Production(oil,gas)}
```

```scala
scala> production.parse(workbook)
res35: Either[ParserError,Production] = Right(Production(List(10.12, 12.34, 8.83, 6.23, 9.18, 12.36, 16.28, 18.25, 20.01),List(0.0, 0.0, 0.0, 3.2, 6.5, 6.38, 5.72, 4.54, 6.99)))
```

---
# Parser is a Cartesian Functor

```scala
trait Functor[F[_]]{
  def map[A,B](fa: F[A])(f: A => B): F[B]
}

trait Cartesian[F[_]]{
  def product[A, B](fa: F[A], fb: F[B]): F[(A, B)]
}
```

---
# Parser is a Cartesian Functor

```scala
implicit val cartesianFunctor: Functor[Parser] with Cartesian[Parser] = ???
```

```scala
import cats.syntax.all._

val oil = numericRange("OilProd")
val gas = numericRange("GasProd")

val production = (oil |@| gas).map(Production)
```

```scala
(oil |@| gas |@| foo)
```

---
# Coproduct

```scala
sealed trait Fee extends Product with Serializable
case class TechnicalFee(technical: Double) extends Fee
case class ExplorationFee(exploration: Double, postExploration: Double) extends Fee
```

```scala
val technicalFee: Parser[TechnicalFee] = numeric("TechnicalFee").map(TechnicalFee)

val explorationFee: Parser[ExplorationFee] =
  (numeric("ExplorationFee") |@| numeric("PostExplorationFee")).map(ExplorationFee)
```

```scala
scala> technicalFee.parse(workbook)
res41: Either[ParserError,TechnicalFee] = Left(MissingName(TechnicalFee))

scala> explorationFee.parse(workbook)
res42: Either[ParserError,ExplorationFee] = Right(ExplorationFee(1.4,5.8))
```

```scala
val fee: Parser[Fee] = ???
```

---
# Combine

```scala
def combine[A](p1: Parser[A], p2: Parser[A]): Parser[A] = new Parser[A]{
  def parse(workbook: Workbook): Either[ParserError, A] =
    p1.parse(workbook) orElse p2.parse(workbook)
}
```

```scala
scala> val fee = combine(technicalFee, explorationFee)
<console>:36: error: type mismatch;
 found   : Parser[TechnicalFee]
 required: Parser[Fee]
Note: TechnicalFee <: Fee, but trait Parser is invariant in type A.
You may wish to define A as +A instead. (SLS 4.5)
       val fee = combine(technicalFee, explorationFee)
                         ^
<console>:36: error: type mismatch;
 found   : Parser[ExplorationFee]
 required: Parser[Fee]
Note: ExplorationFee <: Fee, but trait Parser is invariant in type A.
You may wish to define A as +A instead. (SLS 4.5)
       val fee = combine(technicalFee, explorationFee)
                                       ^
```

---
# Combine

```scala
val fee = combine(
  technicalFee.map(f => f: Fee),
  explorationFee.map(f => f: Fee)
)
```

```scala
val fee = combine(
  technicalFee.widen[Fee],
  explorationFee.widen[Fee]
)
```

```scala
scala> fee.parse(workbook)
res43: Either[ParserError,Fee] = Right(ExplorationFee(1.4,5.8))
```

---
# Parser is a SemigroupK

```scala
trait Semigroup[A]{
  def combine(x: A, y: A): A
}

trait SemigroupK[F[_]]{
  def combineK[A](x: F[A], y: F[A]): F[A]
}
```

```scala
implicit val parserSemigroupK: SemigroupK[Parser] = ...
```

```scala
val fee = technicalFee.widen[Fee] <+> explorationFee.widen[Fee]
```

```scala
scala> fee.parse(workbook)
res44: Either[ParserError,Fee] = Right(ExplorationFee(1.4,5.8))
```

---
# How to find abstractions

```scala
def numericRange(workbook: Workbook, name: String): List[Double] = ???
```

```scala
def numericRange(workbook: Workbook, name: String): Either[ParserError, List[Double]] = ???
```

```scala
trait Parser[A]{
  def parse(workbook: Workbook): Either[ParserError, A]
}

def product[A, B](pa: Parser[A], pb: Parser[B]): Parser[(A, B)] = ???

def combine[A](pa: Parser[A], pb: Parser[A]): Parser[A] = ???
```

```scala
implicit def instances: Functor[Parser] with Cartesian[Parser] with SemigroupK[Parser] = ???
```

---
# Is it worth it?

```scala
val technicalFee = numeric("TechnicalFee").map(TechnicalFee)

val explorationFee = (numeric("ExplorationFee") |@| numeric("PostExplorationFee")).
    map(ExplorationFee)

val fee = technicalFee.widen[Fee] <+> explorationFee.widen[Fee]
```

---
class: center, middle

# Thanks!
Code and slides at `julien-truffaut/excel-parser` on GitHub

## Questions?

---
# Bonus: Sequential composition

```scala
sealed trait Cost extends Product with Serializable

case class Hardcoded(value: List[Double]) extends Cost
case class Parametrized(value: Double) extends Cost

val cost = boolean("Cost").flatMap{
  case true  => numericRange("HardcodedCost").map(Hardcoded).widen[Cost]
  case false => numeric("ParametrizedCost").map(Parametrized).widen[Cost]
}
```
